Day 13/30: Visual Cheat Sheet on IBM Quantum Hardware Architecture

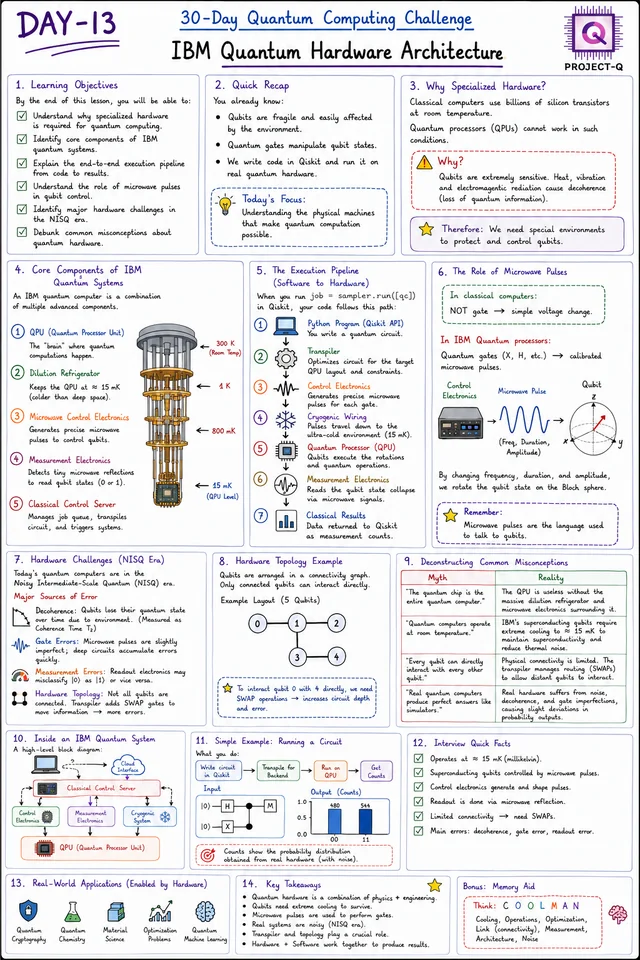

Hey everyone, I am currently participating in the Project-Q - 30 Days Quantum Challenge, where we are given daily tasks and milestones to master quantum concepts step-by-step. A huge shoutout to the Project-Q organizers for this amazing initiative—full credit to them for providing the structure and keeping the momentum going! As part of my daily task for Day 13, I’ve put together these visual study notes. Today's topic is a deep dive into the physical machines that actually run our quantum circuits: IBM Quantum Hardware. We often write Qiskit code without visualizing the massive engineering stack needed to execute it. I made this cheat sheet to break down: Core Components: QPU, Dilution Refrigerators (~15 mK!), and Microwave Control Electronics.

The Execution Pipeline: The exact path from a Python script to a physical microwave pulse. NISQ Era Challenges: Decoherence, gate errors, and hardware topology (and why we need SWAP gates). Common Misconceptions: Debunking the idea that quantum computers are just "super-fast classical computers." I thought this might be helpful for other students or beginners trying to bridge the gap between quantum software and hardware. Let me know what you think! submitted by /u/In-fin-techguy712 [link] [comments]
